quick and easy step-by-step instructions
Quick and easy step-by-step instructions to control the main functions and to configure the system settings of your spa from in.k300 main spa keypad.
Depending on the spa configuration, in.k300 can control up to 2 pumps and a blower. Please refer to the spa user manual to identify the configuration of your spa. The following quick start instructions refers to a 2 pumps and light spa configuration.
Quick and easy steps to control your spa main functions and let you enjoy your spa immediately using a dual pump and light configuration as an example.

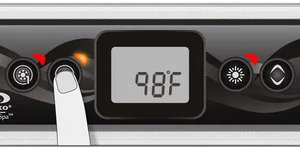

start, select speed and stop pump 1
start, select speed and stop pump 2
(same as pump 1)
open and shut the lights off
set spa water at desired temperature
stop all outputs for a quick spa maintenance
One press gives you access to an intuitive and comprehensive menu to manage the settings of your spa system.
Set your clock, filter and purge cycles, economy mode and temperature units.
setting the clock
Hold the Light key down and use the arrow to set the time.
Set start time, duration and frequency parameters for the filter and purge cycles.
filter/purge start time
The arrow keys will allow the setting of the starting time. Use the Light key to jump to the programming of other parameters.
filter cycle duration
Adjust the duration of the filtering cycle using the arrow keys.
Use the arrow keys to adjust the frequency. The Filter indicator lights up when filter is on and flashes when suspended.
Lowers the temperature of the spa's set point by 20 °F (11 °C).
economy start time
Use the arrow keys to set the hour at which the economy mode will become active.
Use the arrow keys to set the duration in hours of the economy mode, 24 meaning a continuous economy.
Use the arrow keys to set the temperature of the unit, either in Fahrenheit or Celsius.
Smart Winter Mode
Turn the smart winter mode on and allow the pumps to be activated several times a day to protect your system from the cold.
The system will ensure an adequate cooling down after the heater has reached the desired set point.
Every 15 to 90 minutes, the pump will run to ensure an accurate water temperature, as well as to avoid heater activation in dry conditions.
Read complete user instructions in the in.k300 techbook
