Find all Gecko Alliance's keypad on one website.  Every info, settings, specs and more that you may need


in.k19 & in.k35 keypads, a complete control at your fingertips



in.k19 & in.k35 large keypads for spa systems are a perfect fit for intermediate range spas equipped with one or two pumps. Very intuitive, they are meant for a complete control at your fingertips! With large 7 light indicators, they also have been designed to be easy to master, and will allow you to visualize all functions of your spa at on glance.


keypads for one or two pumps spas

in.k19

No need for large manuels to access your different spa functions. With its 4 keys, a simple touch will let you master single or dual pump systems, impeller and lights.





in.k35 keypad by Gecko Alliance

in.k35

in.k35 has 2 extra keys that give the user control of an extra accessory such as a blower. The keypad has a backlight to facilitate nighttime use.



in.k19 & in.k35 work with Gecko's X, Y and Class series of control systems

k19 and k35 models preceded by « in » are compatible with all systems and those without are made for Class series only





spa functions


in.k35 key 1

key 1

Press Key 1 to turn Pump 1 on at low speed. Press a second time to turn the pump to high speed (with a dual-speed pump). A third time turns the pump off. A built-in timer will automatically turn the pump off after 20 minutes.



in.k35 key 2

key 2 (2 pumps syst.)

Press Key 2 to turn Pump 2 on at low speed. If you wish to turn the pump to high speed, press Key 2 a second time. A third press will turn the pump off. A built-in timer will automatically turn the pump off after 20 minutes.

in.k35 key 2

key 2 (in.k19,2-pumps/blower)

Press Key 2 to turn Pump 2 at high speed. Press a second time to turn blower on. A third press turns Pump 2 off and leaves blower on. A final press turns blower off. A built-in timer automatically turns Pump2/Blower off after 20 min.

in.k35 blower key

blower key (in.k35)

Press Blower key to turn the blower on. A second press turns it off. A built-in timer will automatically turn the light off after 2 hours.



in.k35 light key

light key

Press Light key to turn the light on. Press a second time to turn it off. A built-in timer will automatically turn the light off after 2 hours.

in.k35 up/down key

up/down keys

Use Up/Down keys to set desired water temperature. New setting is displayed for 5 seconds to let you confirm your selection.





programming the purge and filter cycles

A simple pressure gives the user the access to a simple menu to manage all functions

in.k35 off mode

off mode

This mode allows you to stop all outputs for 30 minutes to perform a quick spa maintenance. Press and hold Key 1 for 5 seconds to activate the Off mode. Quick press Key 1 to reactivate the system before the expiration of the 30 minutes delay.

in.k35 filter cycle mode

filter cycle duration

Press and hold the Light key until the display shows «dxx», «xx» representing the duration in hours (default: 2 hours).
Use Up and Down keys to change setting. Please note that It is not recommended to set at «0».

in.k35 filter cycle

filter cycle frequency

Press the Light key again. The display will show « Fx », « x » indicating the number of filter cycles per day (up to 4). System has been set for two cycles per day. Press the Light key to confirm your selection. A filter cycle will start immediately.


in.k35 temperature units

setting temperature display

Quick press Light key again. The display will show either °F or °C. Use Up and Down key to change units. Press Light key a last time to go back to normal mode.





in.k35 purge cycle

purge cycle frequency

To program, you must select the frequency. During a purge cycle, pumps and blower run for one minute. To set the purge cycle, press and hold Light key until «Fx» appears, «x» indicating the number of purge cycles per day. Use Up and Down keys to change setting. Press Light key to confirm.








icons and meaning

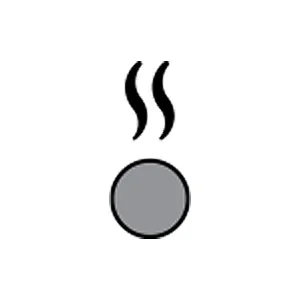

temperature regulation

During a regulation cycle, the system first generates water flow through the heater housing and the plumbing to ensure accurate water temperature readings and to avoid the activation of the heater in dry conditions. After verifying pump activation and taking a water temperature reading, the system will automatically turn the heater on to reach and maintain water temperature at set point. The Heater indicator lights up when the heater is on and flashes when there is a request for more heat but the heater has not started yet.



smart winter mode

Gecko's Smart Winter Mode protects your system from the cold by turning the pumps on several times a day in order to prevent water from freezing in pipes. The SWM indicator lights up when it is on.



cooldown

While performing this task, the heater will not turn on and its icon flashes.








manual library for in.k19 & in.k35 keypads












list and meaning of error messages

Hr

An internal hardware error has been detected. Contact your dealer or service supplier.


HL

The system has shut the heater down because the temperature has reached 119°F (48°C). Do not enter the water! Remove spa cover to allow the water to cool down. Shut power off and power up your spa to reset the system.

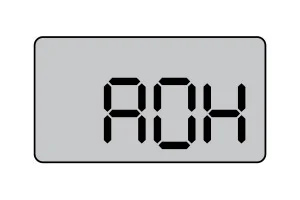

AOH

The temperature inside the spa skirt is too high. This is causing the internal temperature to increase above normal limits. Open the spa skirt and wait until the error clears.


FLO

The system does not detect any water flow while the primary pump is running. Check and open the water valves. Check the water level and clean the filter. If the problem persists, call your dealer or service supplier.


Prr

A problem with the temperature probe has been detected. Contact your dealer or your service supplier.


OH

Water temperature has reached 108°F (42°C). Do not enter the water! Remove the spa cover to allow water to cool down. Call your dealer or service supplier if the problem persists.



rLy

(Only on older software versions) A stuck relay error was detected by the system. Call your dealer or your service supplier.


UPL

No low level configuration software has been installed on your system. Call your dealer or service supplier.
